DRAM vs. SRAM

As we work through the base "Memory Matters" editions, this is a light article on DRAM/SRAM to align newcomers to the technology. In the ever-evolving compute ecosystem, memory plays a crucial role in determining the performance and efficiency of our systems. Two prominent types of memory, Dynamic Random Access Memory (DRAM) and Static Random Access Memory (SRAM), have been at the forefront of this. As we dive into the intricacies of these memory technologies, it becomes evident that understanding their differences, strengths, and weaknesses is paramount in making informed decisions for various design choices.

Differences between DRAM and SRAM

DRAM and SRAM differ in their underlying architecture, data storage mechanisms, and performance characteristics. Both memories are volatile, meaning when power is removed the data state is not stored to predicted values. DRAM is a type of memory that stores data in capacitors within an integrated circuit memory array. These capacitors require periodic refreshing to maintain the stored information. This refreshing process consumes power and introduces latency, making DRAM slower than SRAM. DRAM's simpler architecture allows for higher densities and lower costs per bit, making it an attractive choice for main memory in computing systems.

In contrast, SRAM employs bistable latching circuitry to store data, eliminating the need for refreshing. This design results in faster access times and lower latency compared to DRAM. SRAM's speed and reliability come at a higher cost and power consumption, making it more suitable for applications that prioritize performance over capacity, such as cache memory and specialized memory applications.

Below is a table that outlines some high level differences between DRAM and SRAM.

Applications of DRAM in computing

DRAM's unique characteristics make it well-suited for a variety of computing applications, particularly those that require large memory capacities and prioritize cost-effectiveness over performance.

1. Main Memory: DRAM is widely used as the primary memory in most computing systems, including personal computers, servers, and mobile devices. Its high density and lower cost per bit make it an ideal choice for storing and accessing large amounts of data. Some common types used today are DDR5, LPDDR5x, and High Bandwidth Memory (HBM3).

2. Graphics Memory: In graphics processing units (GPUs), DRAM is often used as the main memory for storing and processing large amounts of graphical data, enabling high-performance rendering and visualization. High Bandwidth Memories (HBM) employ a large IO width to get to its needed bandwidth requirement to feed the ever hungry GPU.

3. Storage Devices: DRAM is employed in solid-state drives (SSDs) and other storage devices as a type of DRAM-cache or buffer, improving read and write performance by temporarily storing frequently accessed data.

4. Network Devices: DRAM finds applications in network devices, such as routers and switches, where it is used for buffering and temporary data storage during packet processing and routing operations.

5. Embedded Systems: In various embedded systems, DRAM is utilized as the primary memory due to its cost-effectiveness and relatively low power consumption, making it suitable for resource-constrained environments.

Applications of SRAM in computing

SRAM's high-speed performance and reliability make it well-suited for applications that demand fast access times and data integrity, even if it comes at a higher cost.

1. Cache Memory: SRAM is extensively used as cache memory in modern processors, providing high-speed access to frequently used data and instructions, improving overall system performance.

2. Specialized Memory Applications: SRAM finds applications in specialized memory applications, such as real-time systems, industrial automation, and aerospace applications, where data integrity and reliability are paramount.

3. Embedded Systems: In certain embedded systems, SRAM is employed for low-latency memory access and reliable data storage, particularly in applications with strict performance requirements or harsh operating environments.

4. Network Devices: As with DRAM, SRAM also is utilized in network devices for storing routing tables and other critical data that require fast access and high reliability.

5. Microcontrollers and FPGAs: SRAM is commonly used in microcontrollers and field-programmable gate arrays (FPGAs) as on-chip memory for storing program code, data, and configuration information.

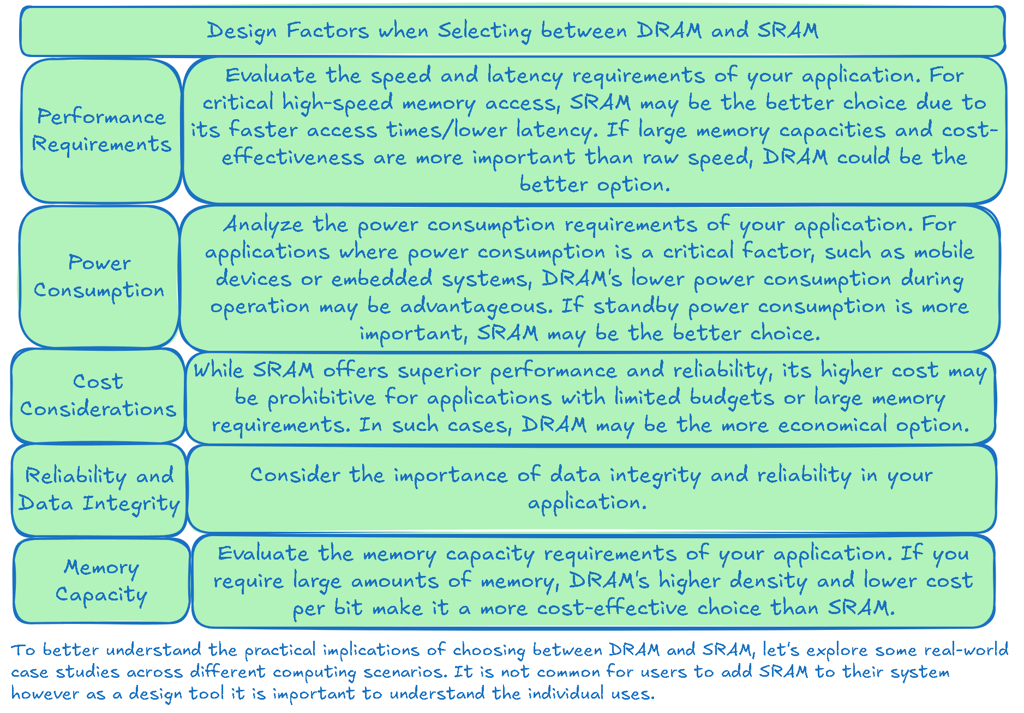

When choosing between DRAM and SRAM in a design, it is crucial to consider various factors that can impact your decision. These factors include performance requirements, power consumption, reliability, memory capacity, and cost considerations.

1. Personal Computers and Laptops

In personal computers and laptops, DRAM is the predominant choice for main memory due to its high density and cost-effectiveness. DRAM's large memory capacity and lower cost per bit make it an ideal solution for running multiple applications simultaneously and handling large data sets. However, SRAM is often used as cache memory within the processor to improve performance by providing fast access to frequently used data and instructions.

2. Servers and Data Centers

In server and data center environments, where large amounts of memory are required to handle high-volume workloads, DRAM is the preferred choice for main memory. Its high density and lower cost per bit enable cost-effective scaling of memory capacity. SRAM, on the other hand, is utilized in cache memory and specialized memory applications that demand high-speed access and reliability.

3. Embedded Systems and Internet of Things (IoT) Devices

In resource-constrained embedded systems and IoT devices, the choice between DRAM and SRAM depends on specific requirements. For applications that prioritize low power consumption and cost-effectiveness, LP-DRAM may be the preferred option. However, if the application demands high reliability and low latency, such as in real-time systems or industrial automation, SRAM may be the better choice despite its higher cost.

4. Graphics Processing Units (GPUs)

In GPUs, DRAM is widely used as the main memory for storing and processing large amounts of graphical data. GPUs require high memory bandwidth and capacity to handle demanding rendering and visualization tasks, making DRAM an ideal choice due to its high density and cost-effectiveness. SRAM, on the other hand, may be used in specialized memory applications within the GPU architecture where high-speed access and reliability are critical.

Conclusion

The choice between DRAM and SRAM is a critical decision that can significantly impact the performance, efficiency, and reliability of your system. Throughout this base comparison, we have explored the fundamental differences between these memory technologies, their respective advantages and disadvantages, and their applications across various computing scenarios.

While DRAM offers high density, lower power consumption, and cost-effectiveness, making it an ideal choice for main memory and large memory capacity requirements, SRAM excels in high-speed performance, reliability, and low latency, making it well-suited for applications that demand fast access times and data integrity, such as cache memory and specialized memory applications.

Ultimately, the decision to choose between DRAM and SRAM depends on a careful evaluation of your specific requirements, including performance, power consumption, reliability, memory capacity, and cost considerations. By understanding the strengths and weaknesses of each memory technology, you can make informed decisions and optimize your computing solutions for maximum efficiency and effectiveness.
